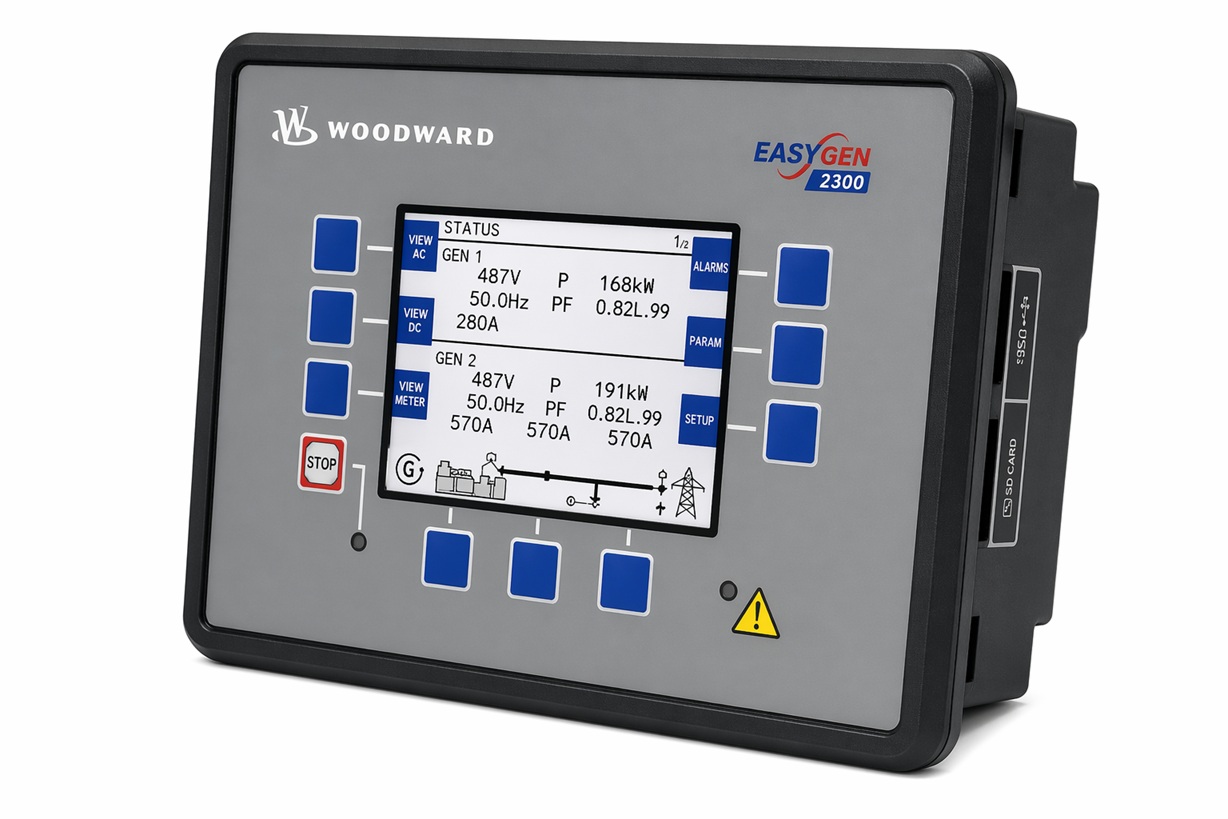

easYgen 2300
| Functions | Island, mains parallel & AMF operation, Generator Protections, LCD display, Event recorder, Auto Synchronizing, Soft loading features, Load depending start-stop (LDSS), Critical Mode Operation |
|---|---|
| Name | DG synchronization controller |
| Auxiliary Voltage | 8 to 40 V DC |
| Power Consumption | 8 W |
| Digital Outputs | 6 |
| Digital Inputs | 8 |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| Mounting Type | Door Mounting |
| Degree of Protection | Front - IP40, Back - IP20 |
| Nominal Frequency | f-50 / f-60 |
| Suitable Genset | Diesel/Gas |
| RS485 | Yes |
| CAN Bus | 1 |
