| Functions | AMF, Standby Operation, Open transition (Breaker before Make), ATS |
|---|---|
| Name | easYgen 1600 |
| Auxiliary Voltage | 12/24 V DC |
| Power Consumption | 2–4 W |
| Digital Outputs | 6 |
| Digital Inputs | 6 |
| Mounting Type | Door Mounting |
| Degree of Protection | Front - IP65, Back - IP20 |
| Nominal Frequency | 50 / 60 Hz |
| Suitable Genset | Diesel |
| Functions | AMF, ATS (automatic transfer switching), Ground Fault |
|---|---|

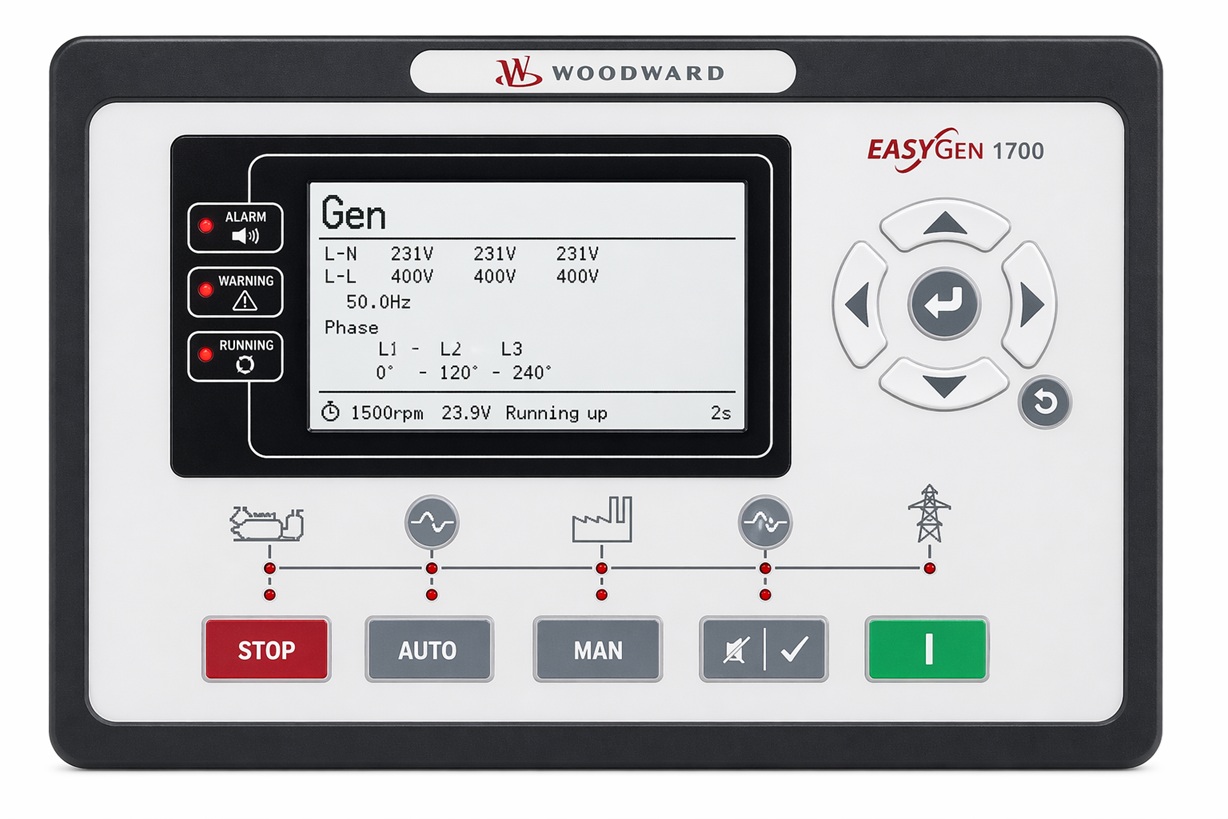

| Name | easYgen 1700 |
| Auxiliary Voltage | 12/24 V DC |
| Power Consumption | 2–4 W |
| Digital Outputs | 8 |
| Digital Inputs | 9 |
| Mounting Type | Door Mounting |
| Degree of Protection | Front - IP65, Back - IP20 |
| Nominal Frequency | 50 / 60 Hz |
| Suitable Genset | Diesel/Gas |
| External DI/DO Add | 16/16 |
| Functions | AMF, ATS (automatic transfer switching), Ground Fault |
|---|---|

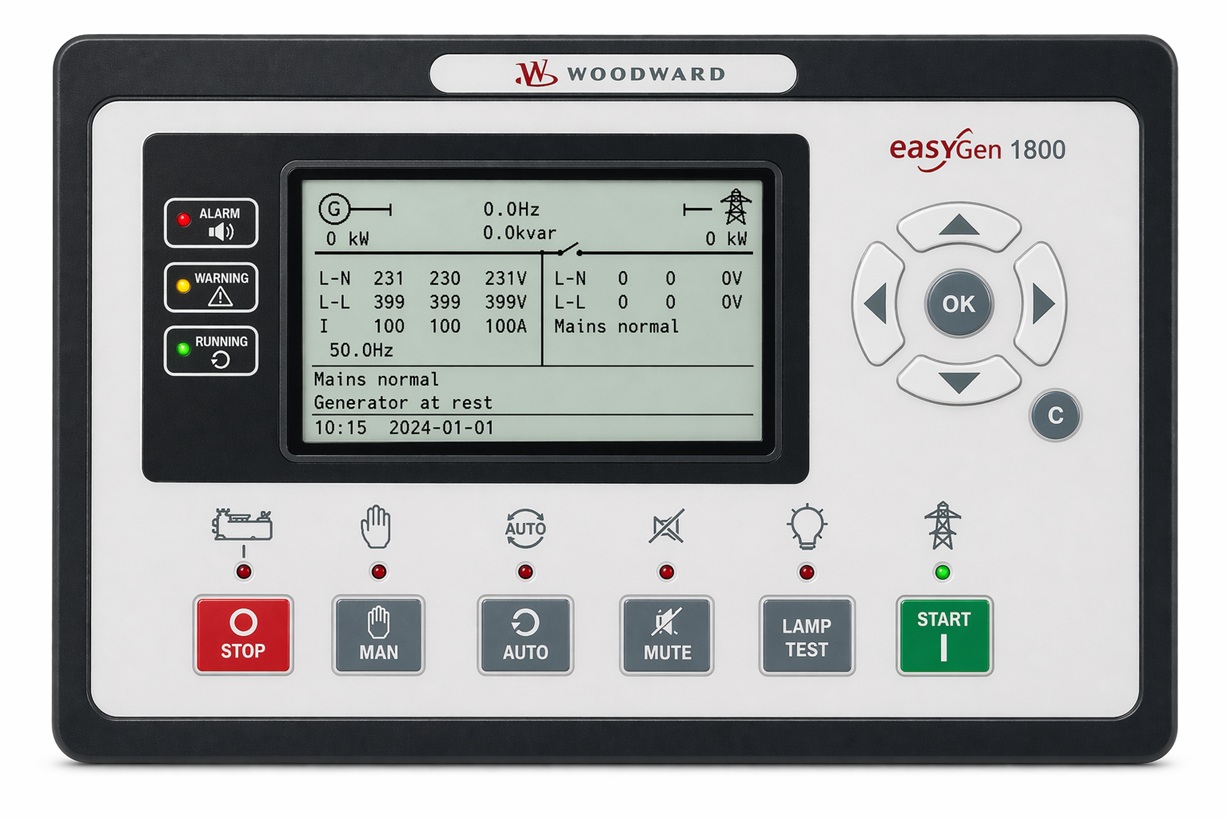

| Name | easYgen 1800 |
| Auxiliary Voltage | 12/24 V DC |
| Power Consumption | max. 2 W |
| Digital Outputs | 8 |
| Digital Inputs | 9 |
| Mounting Type | Door Mounting |
| Degree of Protection | Front - IP65, Back - IP20 |
| Nominal Frequency | 50 / 60 Hz |
| Suitable Genset | Diesel/Gas |
| External DI/DO Add | 16/16 |
| Micro SD Card | Support |
